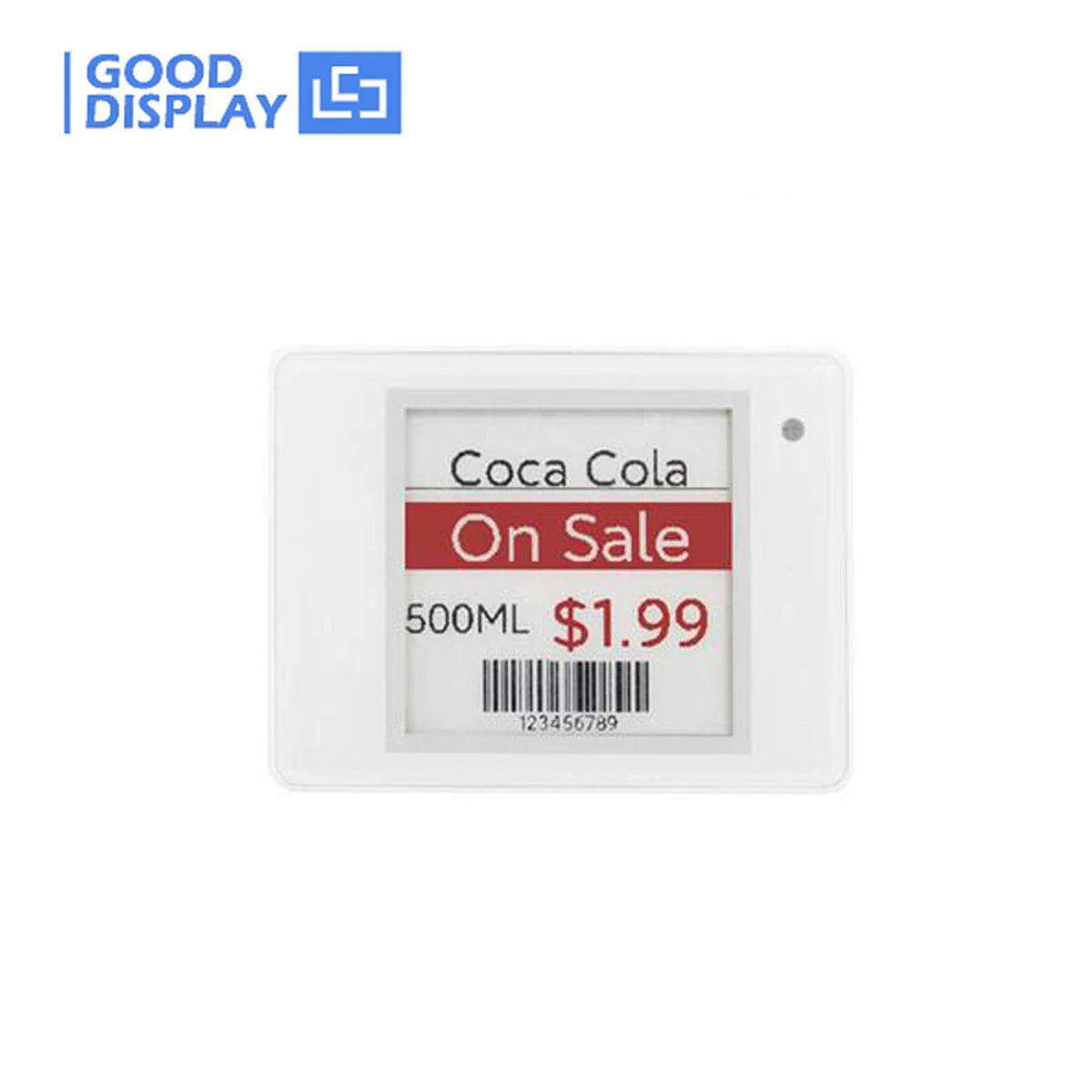

Cheap Price ESl 2.9/7.5 Inch Supermarket Shelf Label Electronic Label Customizable Smart Label

$35.10 USD

~~$0.00 USD~~ $35.10 USD

Sale Sold out

Shipping calculated at checkout.

Color 2.13Inch 7.5Inch 1.54Inch

SPECIFICATIONS

Brand Name: goodisplay

High-concerned chemical: None

Model: ET0154/ET0213/ET0290/ET0420/ET0750

Origin: Mainland China

Type: others

		2.9/7.5 Inch E-paper Bluetooth Digital Tag (Android Smart Phone APP Version)
		This 2.9-inch or 7.5-inch smart tag features a clear and vibrant e-paper display, available in tri-color. It is ideal for retail stores, supermarkets, and other commercial spaces, offering easy remote updates through smartphone Bluetooth. This allows you to display any content you choose effortlessly. Energy-efficient and durable, They provide a cost-effective and sustainable solution for modernizing your pricing strategy and reducing operational costs.


	Special Features
	● The standard protection rating is IP65, which is fully dustproof and water-resistant, making it suitable for outdoor and damp environments. Optional ratings of IP54 and IP68 are also available. ● Data Transmission: Data is sent in actual data format, not as an image. A single server can manage over 50,000 stores. ● We will select the appropriate communication protocol based on the customer's needs, ranging from Bluetooth with a 30-meter radius to long-range WloTa or LoRa 433 transmission up to 2 km. ● Pricing: We follow the Amoeba management model, ensuring the lowest prices in the market.

Technical Details

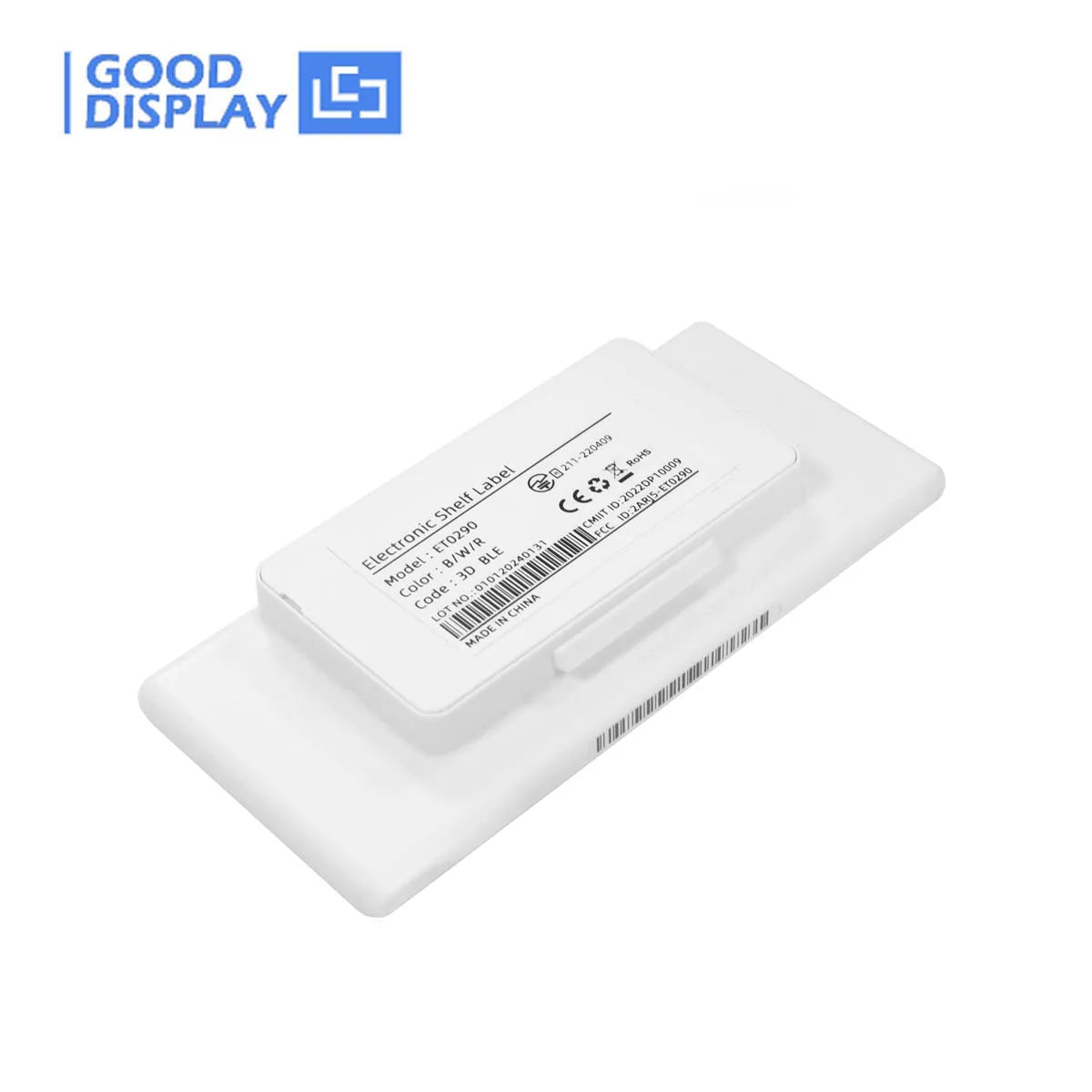

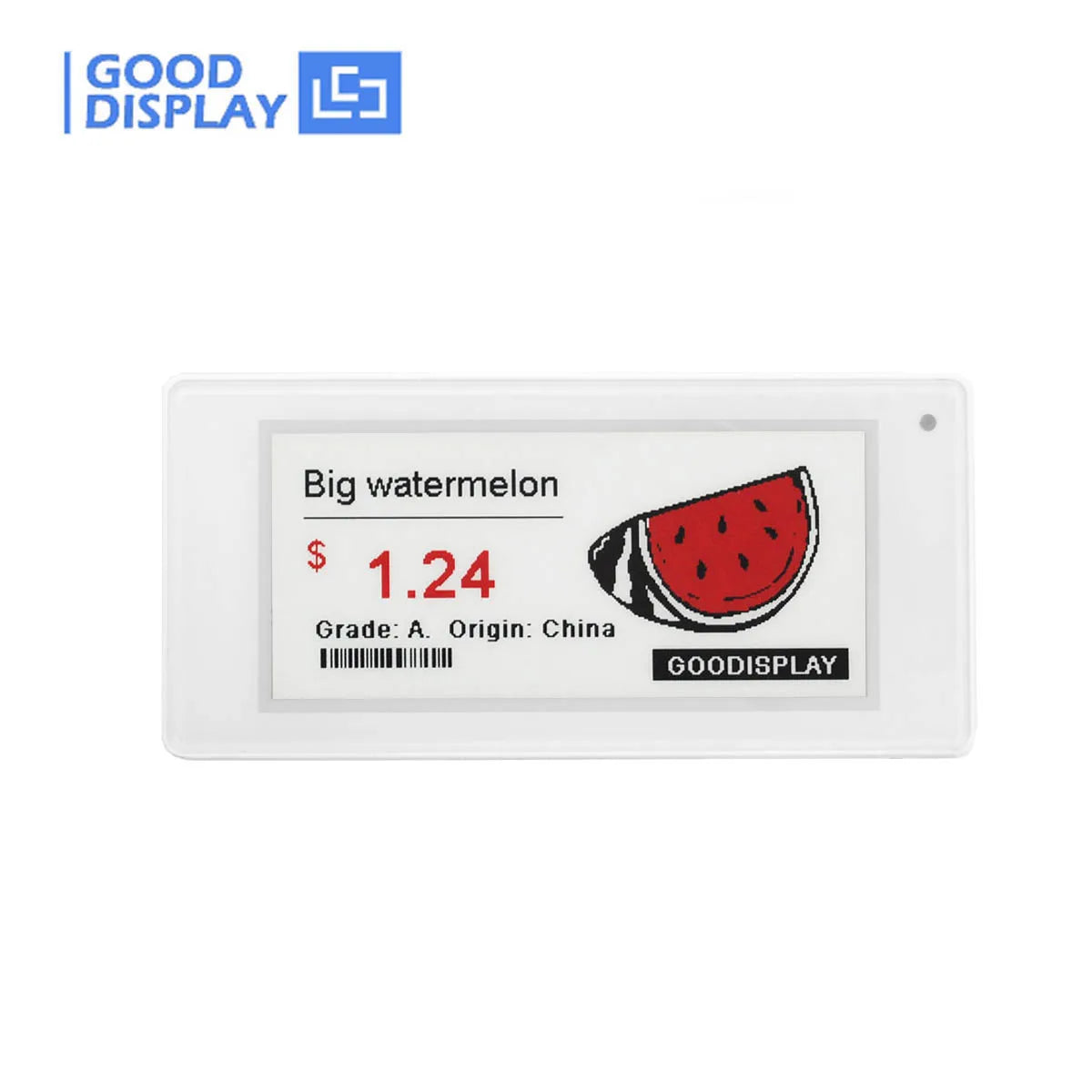

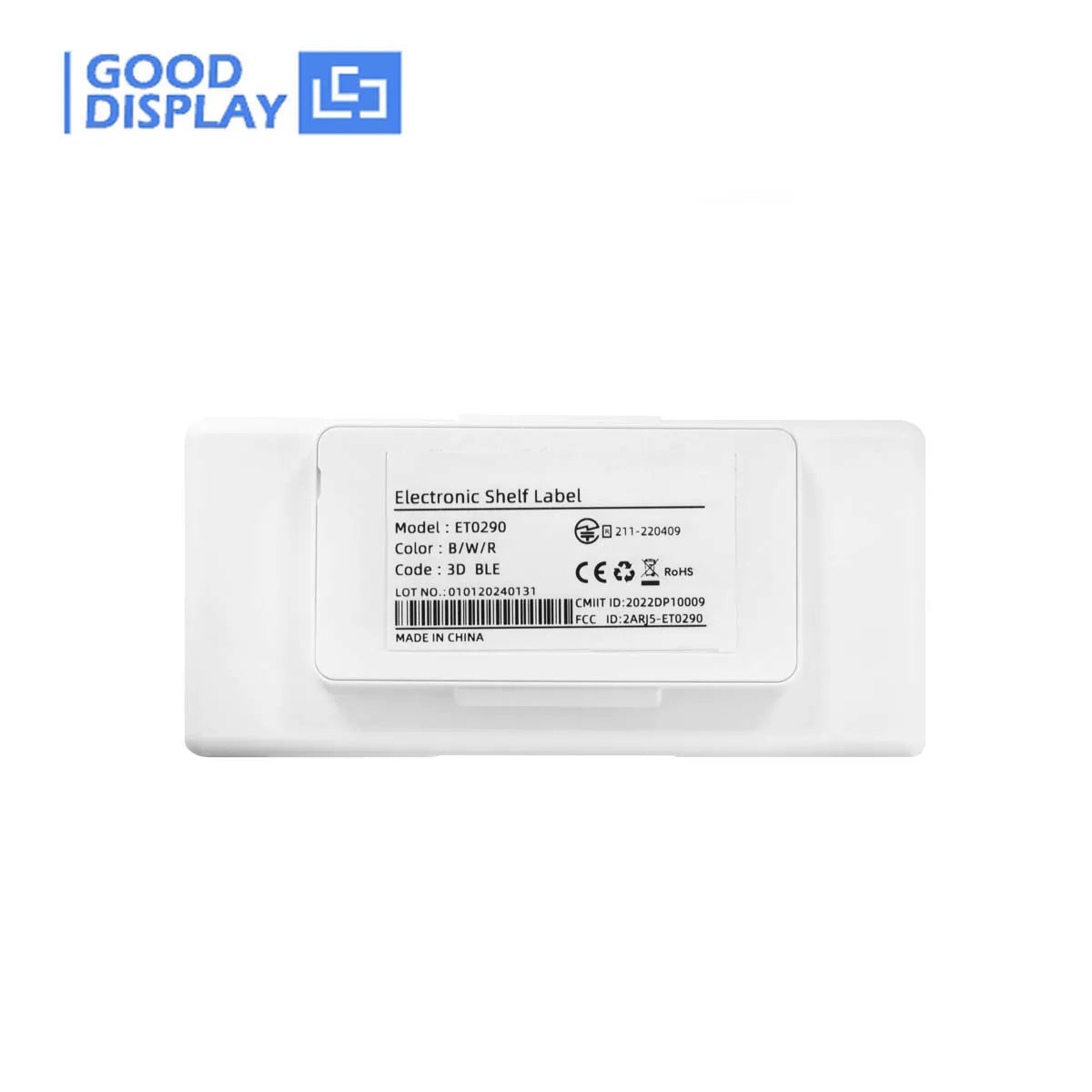

2.9 Inch E-paper Bluetooth Digital Tag-ET0290-3DB

TECHNICAL SPECIFICATIONS	Outline Dimension: 91.39mm(H)×41.99mm(V)×12.3mm(D) Weight: 40g Operating temperature: 0~40℃ Operating humidity: 45%~70%RH Protection rating (Optional): IP54 LED: Red, Green, Blue, three primary colors, Support 7 colors Communication Band: 2.400-2.480 GHz Communication Distance: Within 30 meters (50 meters in open areas)
DISPLAY SPECIFICATIONS	Size: 2.9 inch Resolution: 296(H)×128(V) DPI: 112 Active Area: 66.9mm(H)×29.06mm(V) View Angle: >170° Shell Color (optional): Black/White Screen Display Color: Black, White, and Red (tri-color)
BATTERY SPECIFICATIONS	Batteries: CR2450 x 2 Battery life time: Up to 7 years (industry leader)
FEATURES	NFC (Optional) Yes Wireless Firmware Update Yes Usable Pages 8 Pages Compliance CE, RoHS, FCC, MIC, SRRC

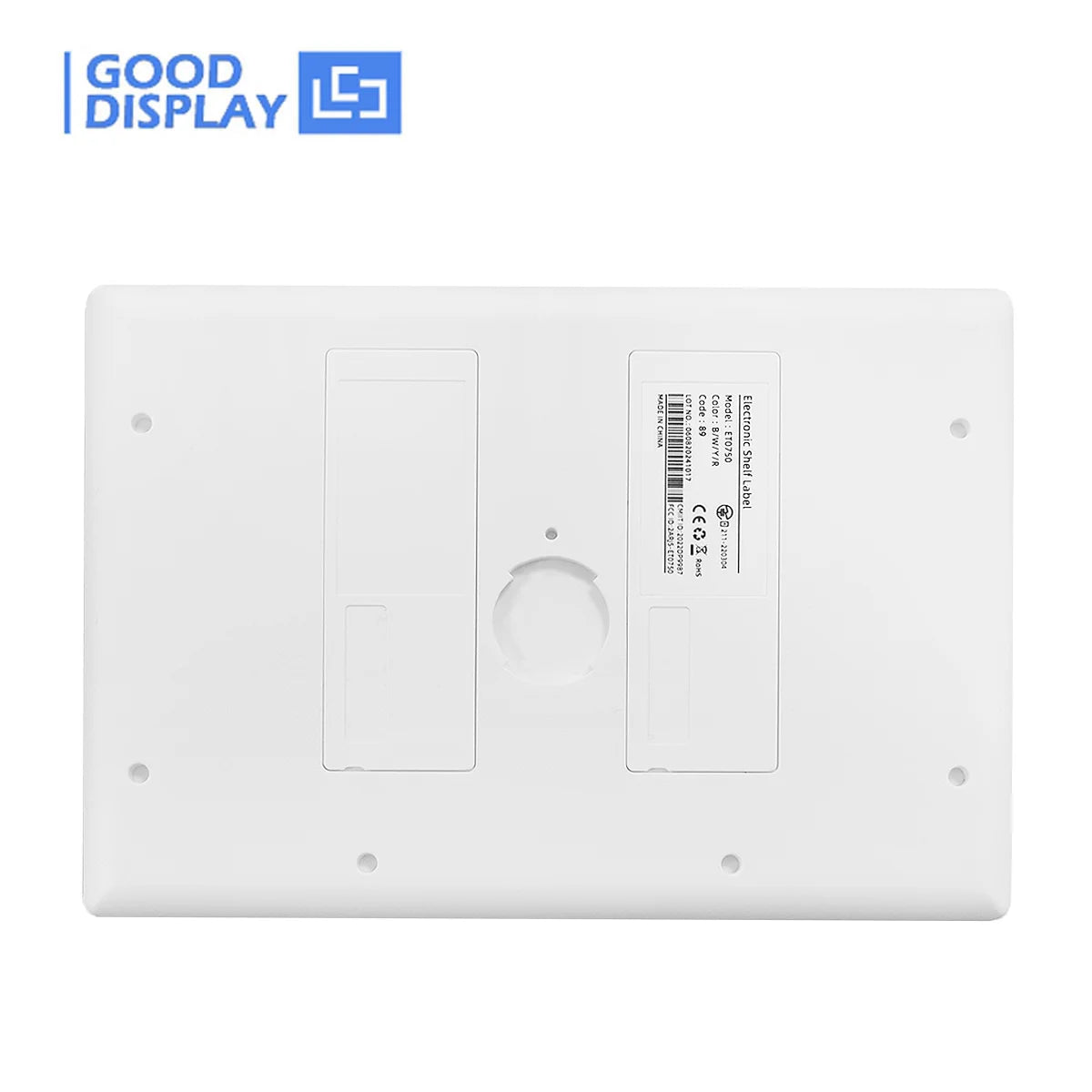

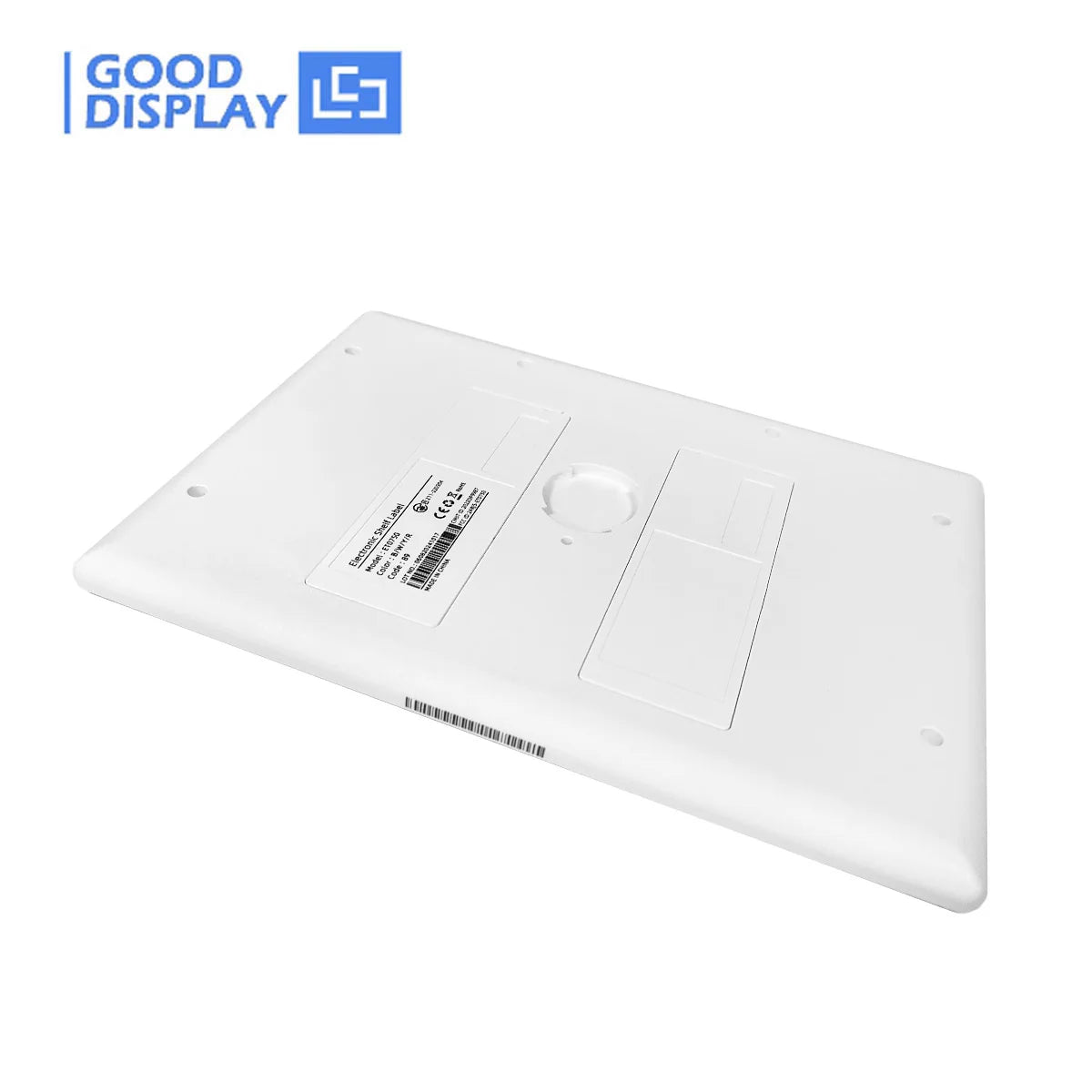

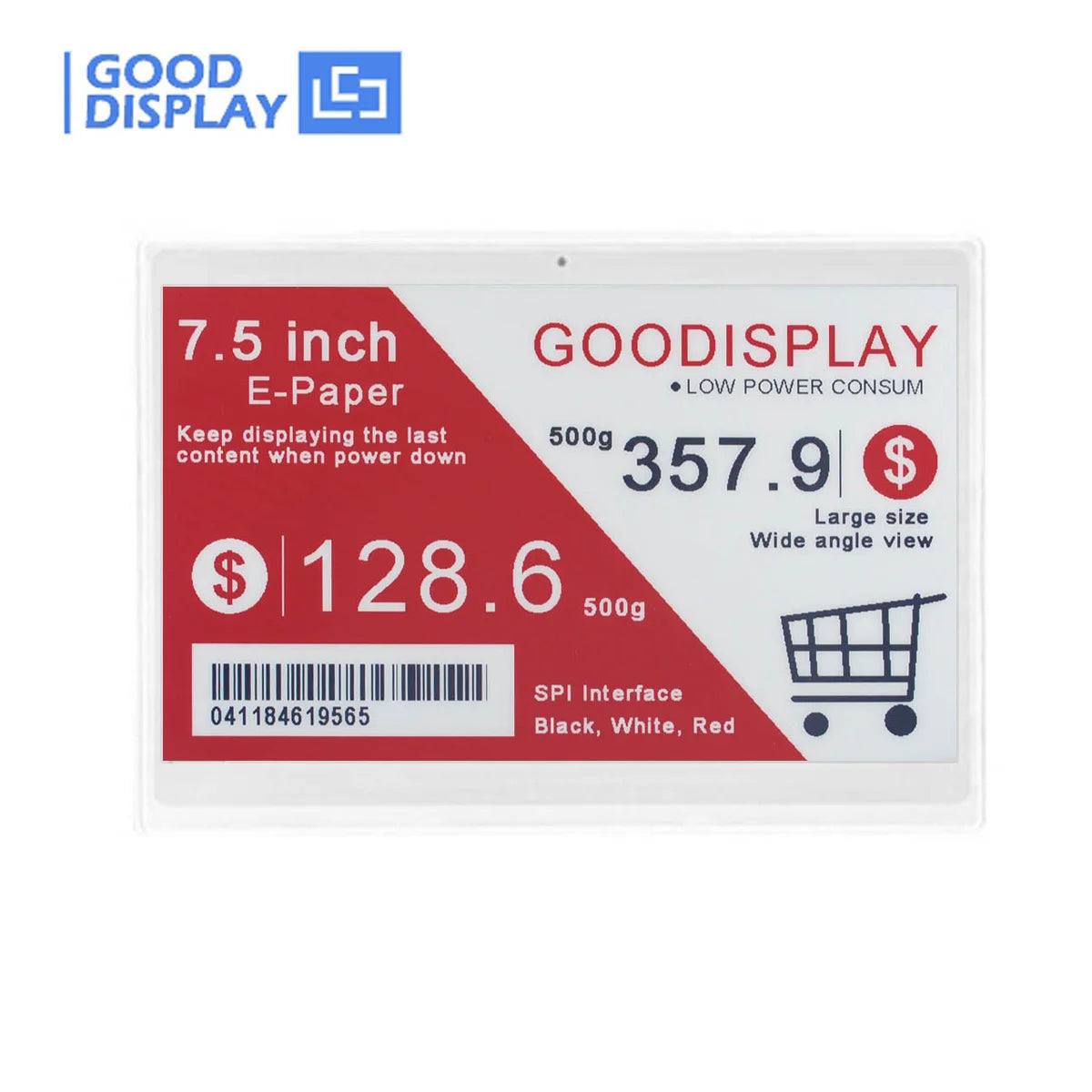

7.5 Inch E-paper Bluetooth Digital Tag-ET0750-44B

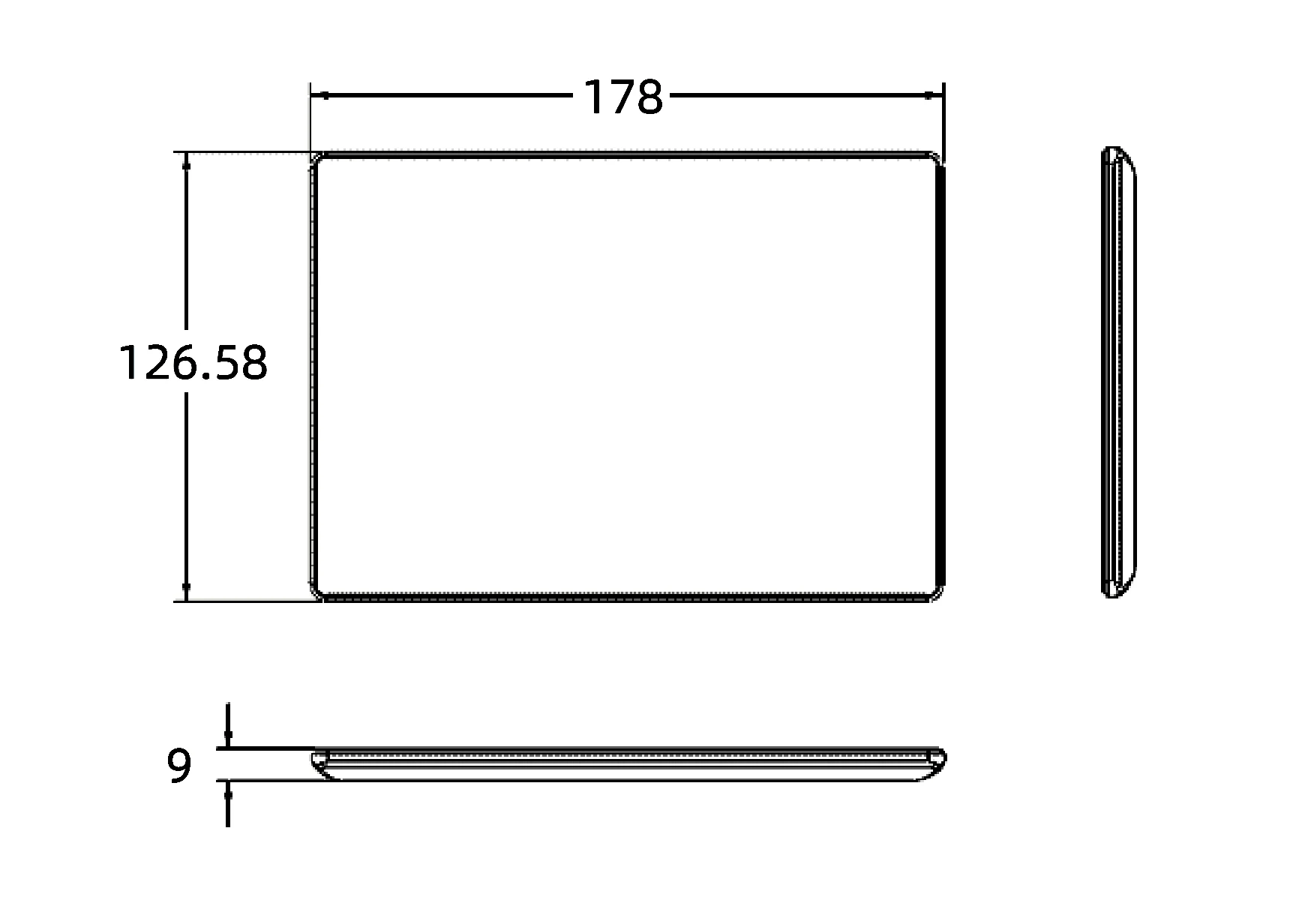

TECHNICAL SPECIFICATIONS	Outline Dimension: 178mm(H)×126.58mm(V)×9mm(D) Weight: 186g Operating temperature: 0~40℃ Operating humidity: 45%~70%RH Protection rating (Optional): IP54/IP65/IP68 LED: Red, Green, Blue, three primary colors, Support 7 colors Image Update: Over 30 000 labels / hour (500 / min) Communication Band: 2.400-2.480 GHz Communication Distance: Within 30 meters (50 meters in open areas)
DISPLAY SPECIFICATIONS	Size: 7.5 inch Resolution: 800(H)×480(V) DPI: 136 Active Area: 163.2mm(H)×97.9mm(V) View Angle: >170° Shell Color (optional): Black/White Screen Display: Color (optional) Black, White, and Red (tri-color) / Black, White, Red, and Yellow (four-color)
BATTERY SPECIFICATIONS	Batteries: CR2450 x 6 Battery life time: Up to 7 years (industry leader)
FEATURES	NFC (Optional): Yes Wireless Firmware Update: Yes Usable Pages: 8 Pages Compliance: CE, RoHS, FCC, MIC, SRRC

	Choose Your Perfect Solution: Smartphone APP or Gateway Version

	Mobile Communication		Gateway Version
	When using a small number of electronic tags, you don't need cloud servers, ESL management systems, or access points—just a single Android smartphone is sufficient to easily update prices and give your store a modern, sophisticated appearance.		For a larger number of electronic tags, the access point allows for centralized management and remote updates. This setup reduces maintenance costs, saves time, and enhances the store's overall image.


	Files And Download
	● ET0290_specification	● Android-Smartphone-APP-Manual
	● ET0750_specification	● Gateway ETAP05 Specification
	● ESL_Management_manual	● Introduction to ESL & System
	● E-Ink APP for Android Phone E-label.apk

Product Application

Supermarkets and hypermarkets	Nameplate	Warehousing and logistics	Smart card

Every Day is Earth Day
You don't need to be an environmental scientist to make sustainable choices. At GooDisplay, we passionately integrate sustainability into the production of e-paper.

Substitute for Paper Usage Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.	Device Packaging 95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.	Energy Efficiency Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.

About Us

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [aliexpress@good-display.com].
